Description

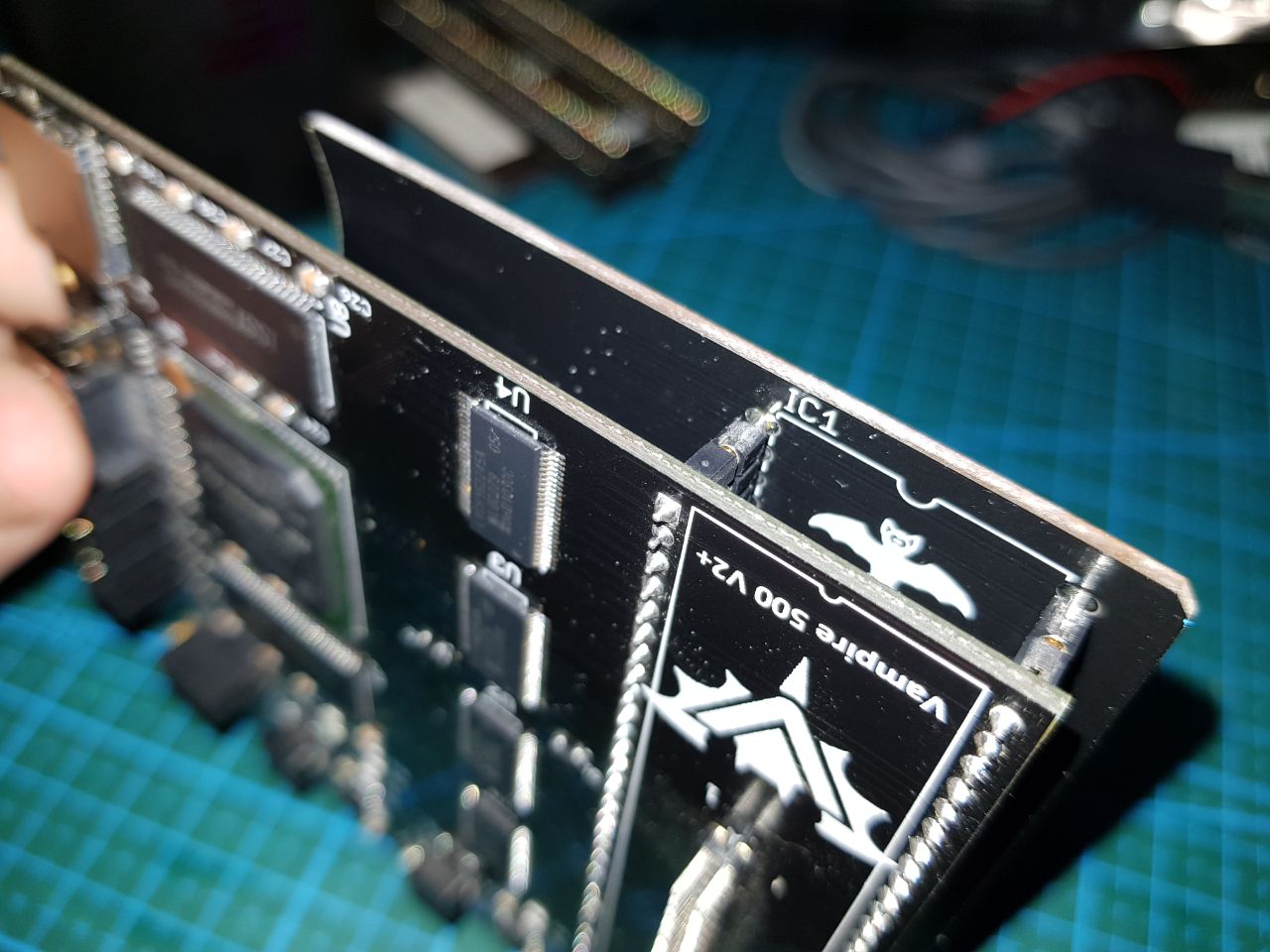

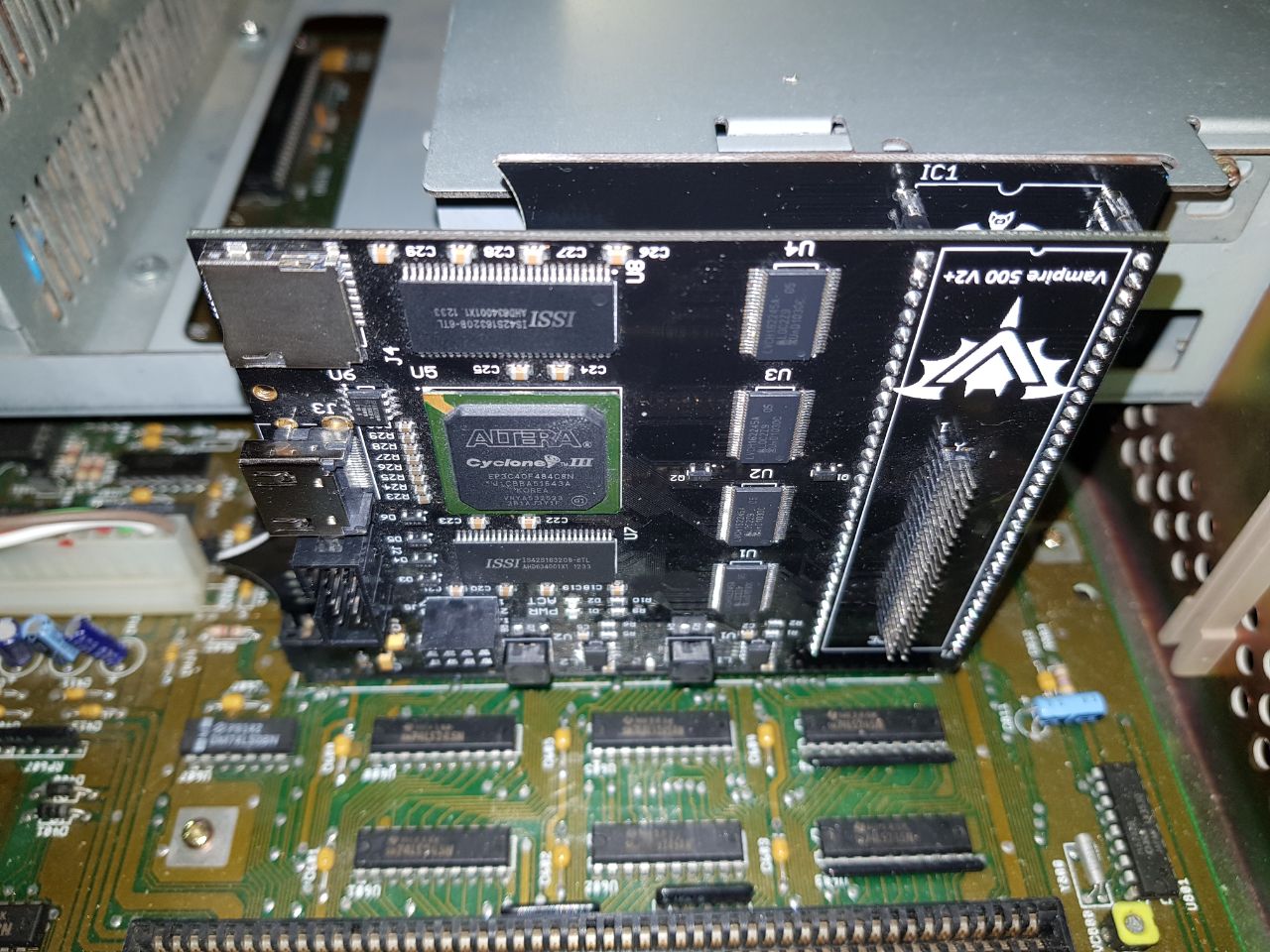

This board allows you to plug an accelerator or CPU into the CPU slot of the Amiga 2000. It has been specially made for Vampire 500 v2+, rotating the HDMI connector to 90° so it will not interfere with the A2000 Case.
Specs of the new version:
- Rebuild ethe dge connector for better contact.
- Rerouted from the ground.
- Added decoupling caps.
- NEW – Improved power supply lines.
Gold enig finish.
It has been tested with the following accelerators and CPUs:

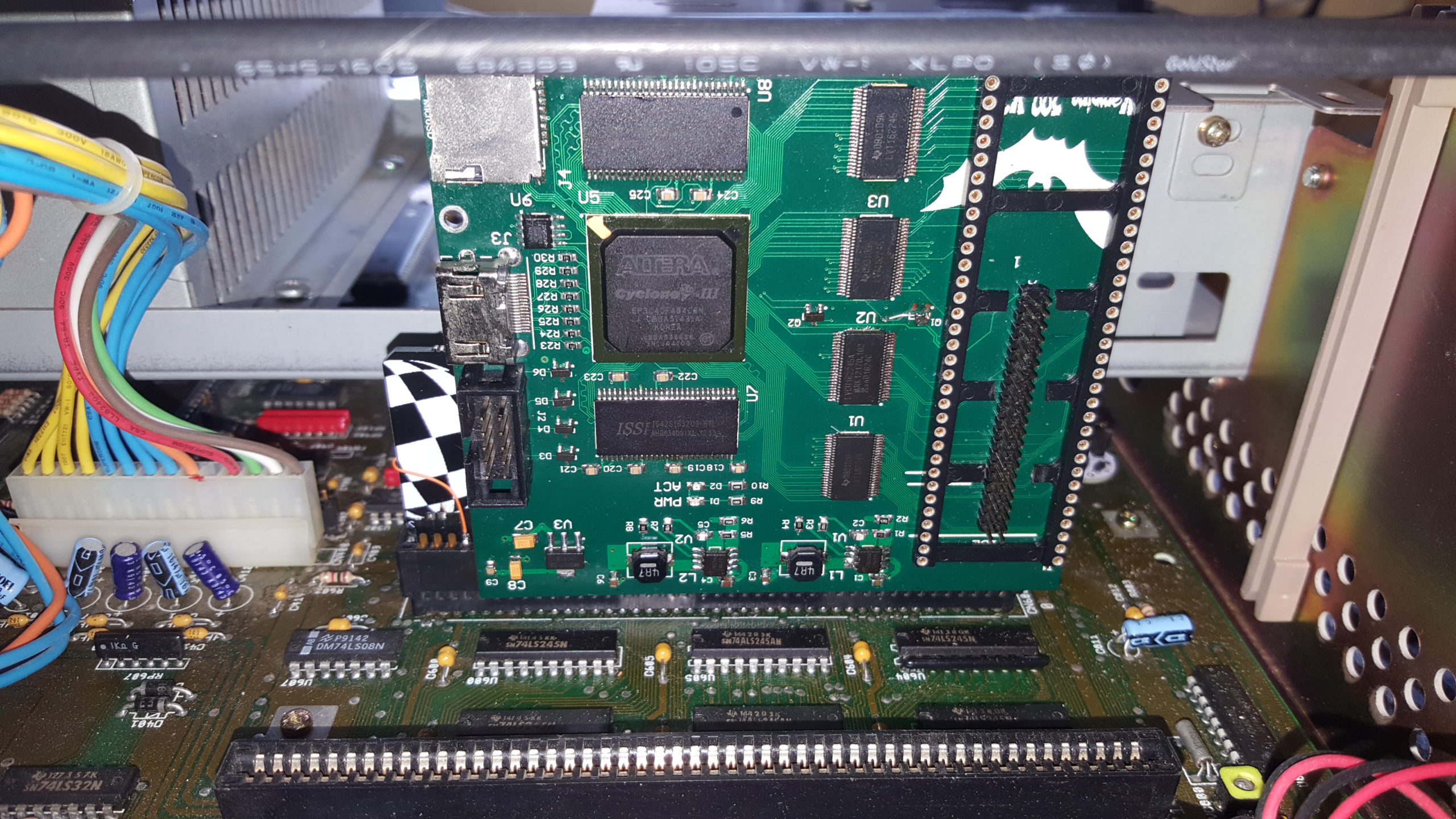

- Vampire 500 from Apollo Team
- TF328 from S. Leary

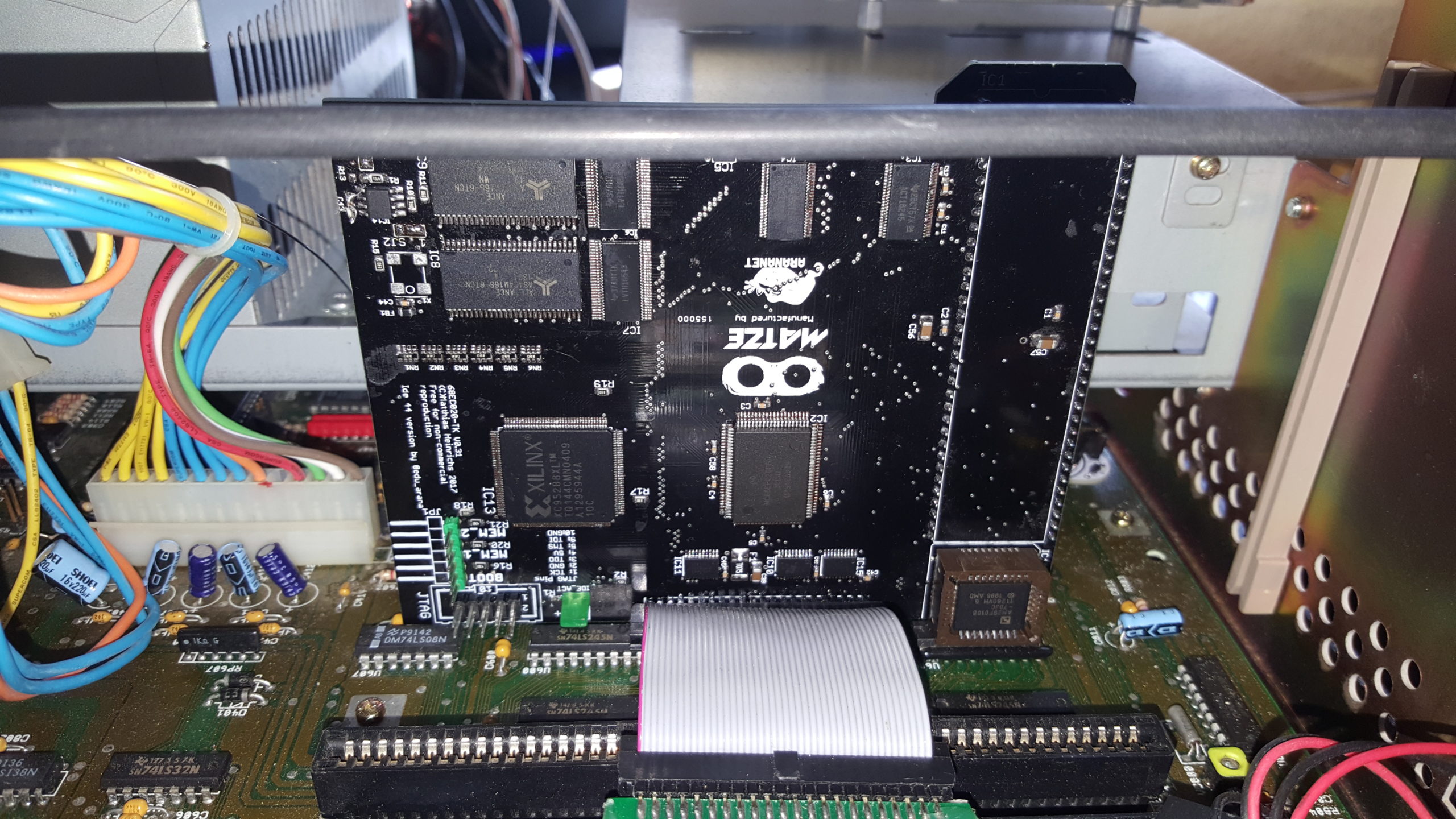

- 68ec020tk from Matze.
- Standard 68000 / 68010.
- Pistorm friendly!
Note: Accelerators and A2000 not included 🙂
Addons: There is a great 3d part made by Peter Weuffen on Thingiverse that avoids the PCB from bending. More information and orders here: https://www.thingiverse.com/thing:2800315

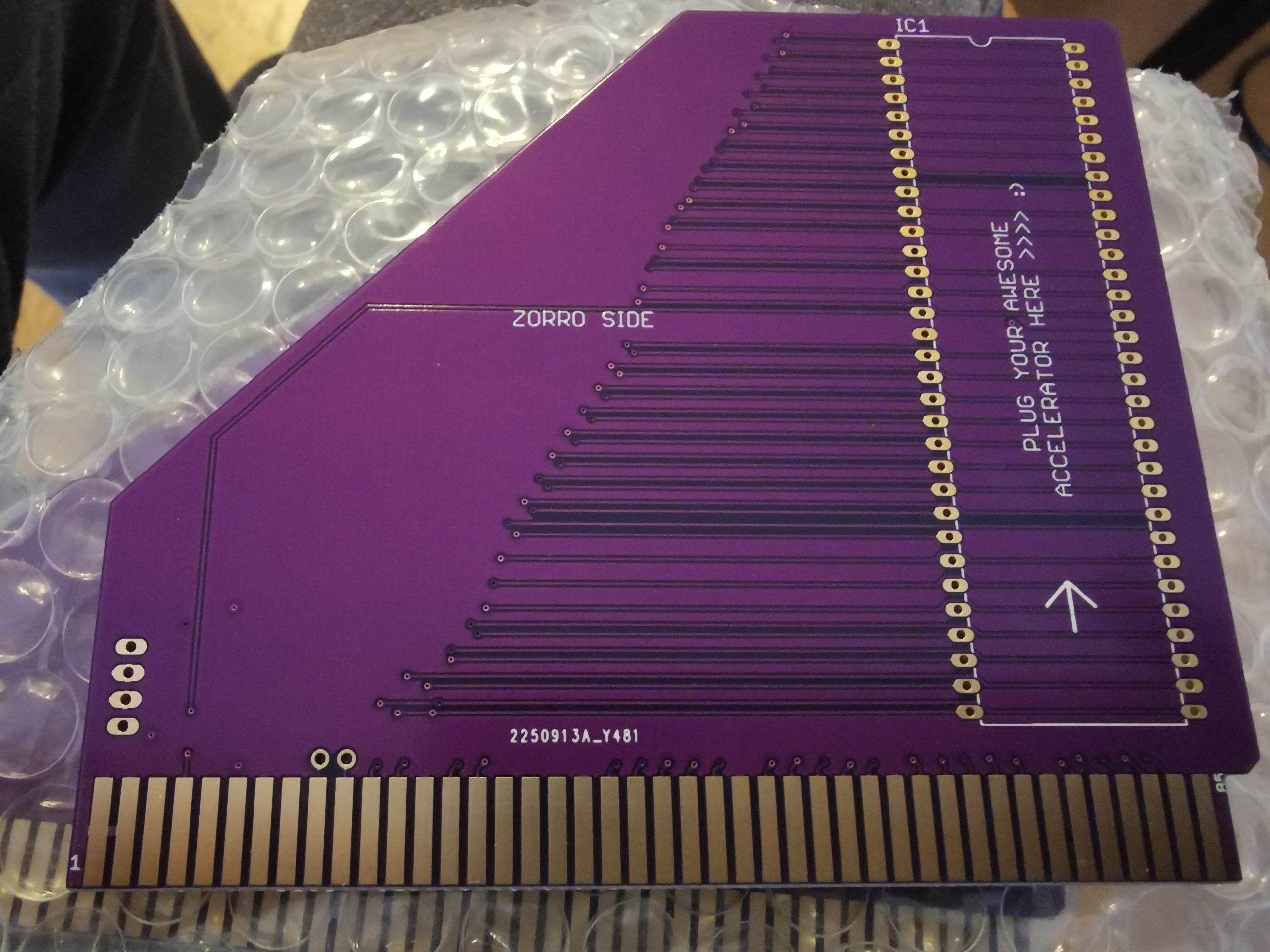

Important: Note that the pin rows must be soldered on the side that shows “PLUG YOUR AWESOME ACCELERATOR HERE.” If you find it different on your board, please contact me at info@docker-image-production-b51e.up.railway.app and do not connect anything there.
